    BCX Fiber Laser Engraving Machine , 7000mm/S 100w Fiber Laser Engraver

    Ask Lasest Price
    Brand Name : bcx
    Model Number : bcx-2
    Certification : ce
    Price : 1500 dollars
    Payment Terms : T/T
    Supply Ability : 99
    Delivery Time : 8
    • Product Details
    • Company Profile

    BCX Fiber Laser Engraving Machine , 7000mm/S 100w Fiber Laser Engraver

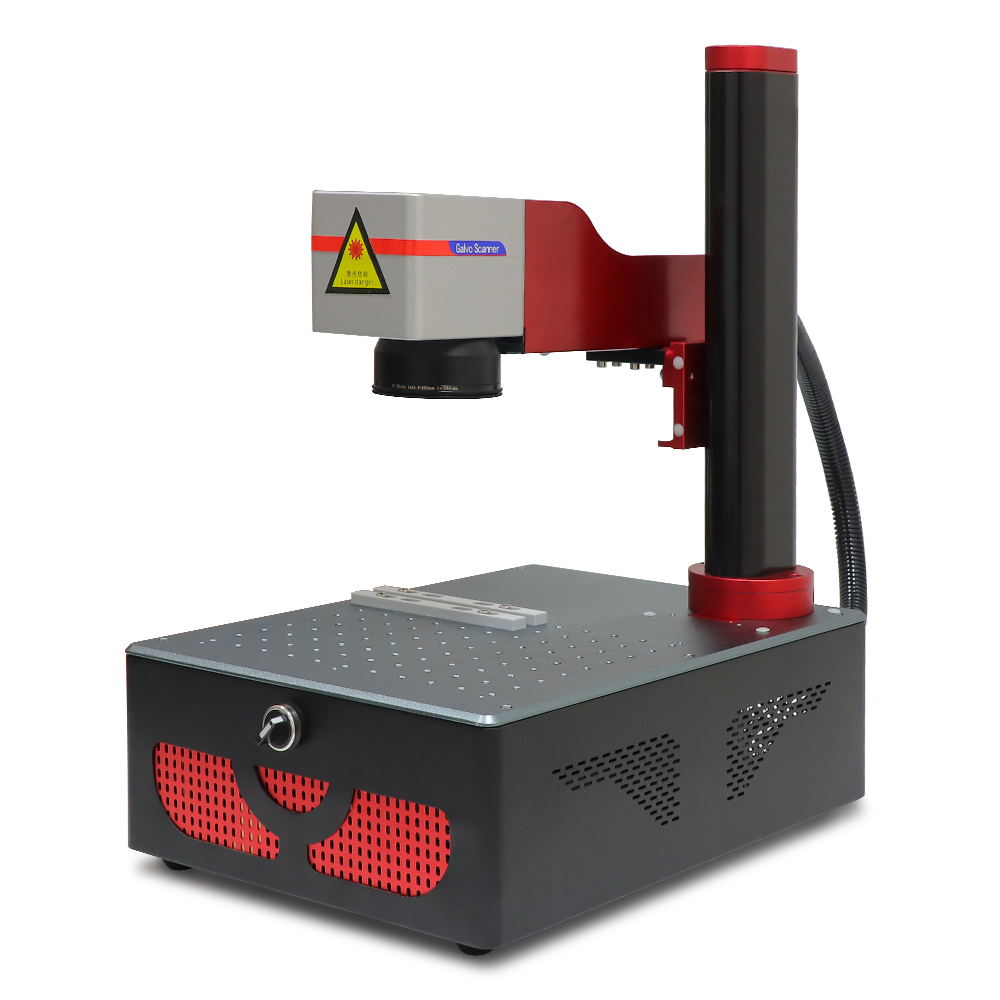

    100w Desktop portable split fiber laser marking machine for jewelry inside ring laser engraving

    Overview
    Features:
    1. It is suitable for marking and engraving on metal, aluminum, stainless steel, brass, silver, alloy, iron and nonmetal surface.

    2. High speed and delicate marking. Smooth and beautiful marking effect.

    3. It comes with large piece of aluminum plate worktable, which helps improving the position precision. Optional rotary device can be added for round shape products marking.
    Quick Details
    Application:
    Laser Marking
    Working Accuracy:
    0.001mm
    Graphic Format Supported:
    AI, PLT, DXF, BMP, Dst, Dwg
    Laser Type:
    Fiber Laser
    Condition:
    New
    CNC or Not:
    Yes
    Cooling Mode:
    Air Cooling
    Control Software:
    EZCAD
    Place of Origin:
    Jiangsu, China
    Brand Name:
    KUNTAI
    Certification:
    ce, ISO, CCC
    Laser Source Brand:
    RAYCUS
    Control System Brand:
    JCZ
    Weight (KG):
    65 KG
    Key Selling Points:
    High-accuracy
    Warranty:
    1 Year
    After-sales Service Provided:
    Online support, Free spare parts, Video technical support
    Applicable Industries:
    Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Retail, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
    After Warranty Service:
    Video technical support, Online support, Spare parts
    Local Service Location:
    None
    Showroom Location:
    None
    Marking Area:
    110mm*110mm
    Machinery Test Report:
    Provided
    Video outgoing-inspection:
    Provided
    Marketing Type:
    New Product 2020
    Warranty of core components:
    2 years
    Core Components:
    Laser source
    Product name:
    Desktop portable split fiber laser marking machine 20w 30w
    Standard marking area:
    100mm x 100mm
    Frequency of pluse:
    20KHZ~100KHZ
    Marking Speed:
    7000mm/s
    Laser generator Life:
    up to 100,000hours
    Repeated accuracy:
    0.001mm
    Power supply:
    AC220V 50HZ/110V 60HZ
    Operation temperature:
    0-40°C
    Laser wavelength:
    1064nm
    Operate system:
    WinXP/Win7/Win8/Win10

    Packaging & Delivery

    Selling Units:
    Single item
    Single package size:
    71X58X62 cm
    Single gross weight:
    67.000 kg
    Package Type:
     Inner layer: Shrink film to help dust and water proof. Middle
layer: Filling material such as poly foam, EPE foam, cardboard to
help protect machine damage during transit. Outer layer: Standard
plywood case package to meet requirement of different shipping
method.
    Picture Example:
    Lead Time:
    Quantity(Sets)1 - 12 - 3>3
    Est. Time(days)710To be negotiated

    BCX Fiber Laser Engraving Machine , 7000mm/S 100w Fiber Laser EngraverBCX Fiber Laser Engraving Machine , 7000mm/S 100w Fiber Laser EngraverBCX Fiber Laser Engraving Machine , 7000mm/S 100w Fiber Laser Engraver

    Specification
    Product name
    Fiber laser marking machine
    Laser type
    Fiber laser
    Laser wavelength
    1064nm
    Power
    20W/30w/50w/100w
    Standard marking area
    100mm*100mm
    Optional marking area
    150mm*150mm, 200mm*200mm, 250mm*250mm, 300mm*300mm
    Marking speed
    ＜7000mm/s
    Marking depth
    ≤1mm
    Repeated accuracy
    0.001mm
    Minimum line width
    0.01mm
    Minimum character
    0.2mm
    Power supply
    AC220V±10% 50Hz or AC110V±10% 60Hz
    Cooling way
    Air cooling
    Operation temperature
    0-40℃
    Operation system
    Win XP, Win7, Win8, Win10, 32bit/64bit
    Compatible files format
    PLT, DXF, AI, DST, BMP, PNG, JPG, JPEG, PNA, TIF etc.
