1. Laser

Adopting the world’s top fiber laser, stable performance, high efficiency and low cost.

2. Mechanical structure

With double drive closed-loop structure displacement, Y direction has a strong driving force and high speed,

which can give full play to the high speed characteristics of fiber laser.

After two times of aging treatment, the structure of bed body is strengthened to ensure the stability and precision

of bed body for a long time.

3. Control system

By using open CNC system provided by the top suppliers and integrating the company experience in laser industry

for many years, the man-machine interface is so simple and more convenient to operate.

4. Follow-up cutting head

By using the follow-up cutting head of international famous brand, the laser is always in the focus position, can

ensure the cutting effect.

5. Metal nesting software

The optimized software algorithm can save the material to the maximum extent. Integrated a variety of specialty

metal cutting technology such as common edge,bridge and micro connection,the difficulty of operation is reduced,

so that improves the material management function, make full use of waste materials and meet the management

needs.

6. Auxiliary air blowing system

System combines high and low voltage conversion gas path and three gas source structure composed of high

pressure air, nitrogen and oxygen, so customers can select the auxiliary gas according to the processing quality

requirements and cost.

7. Lubrication system

The whole machine is equipped with lubrication system, which reduces the wear of moving parts and ensures the

movement speed of the whole machine.

8. Editing system

The software supports the input and output of the general CAD format file (PLT, DXF, DST, AI, BMP, etc), as well

as graphics editor (zoom, rotate, array, etc)function.

MAIN PARTS

1. Japan YASKAWA double servo driver and rail guide transmission,German Atlanta gear and rack,long service life.

2.Electric,automatic centering chuck, no manual adjustment,any materials from 20-220mm.

3.The machine have before and after chuck ,rigges up servo motor driving system,cutting without jitter,high precision and good synchronization.

5.Adopting Cypcut fiber cutting machine special CNC control system ,it can directly accept the drawings from 3-Dimension drawing software

and 2-Dimension drawing software.The drawings can be directly displayed in the computer.

6.Machine frame,crossbeam and worktable adopt intergral welding,made as stander large machine.It could maintain high strength ,

high precision and keep the normal use of 20 years without deformation.

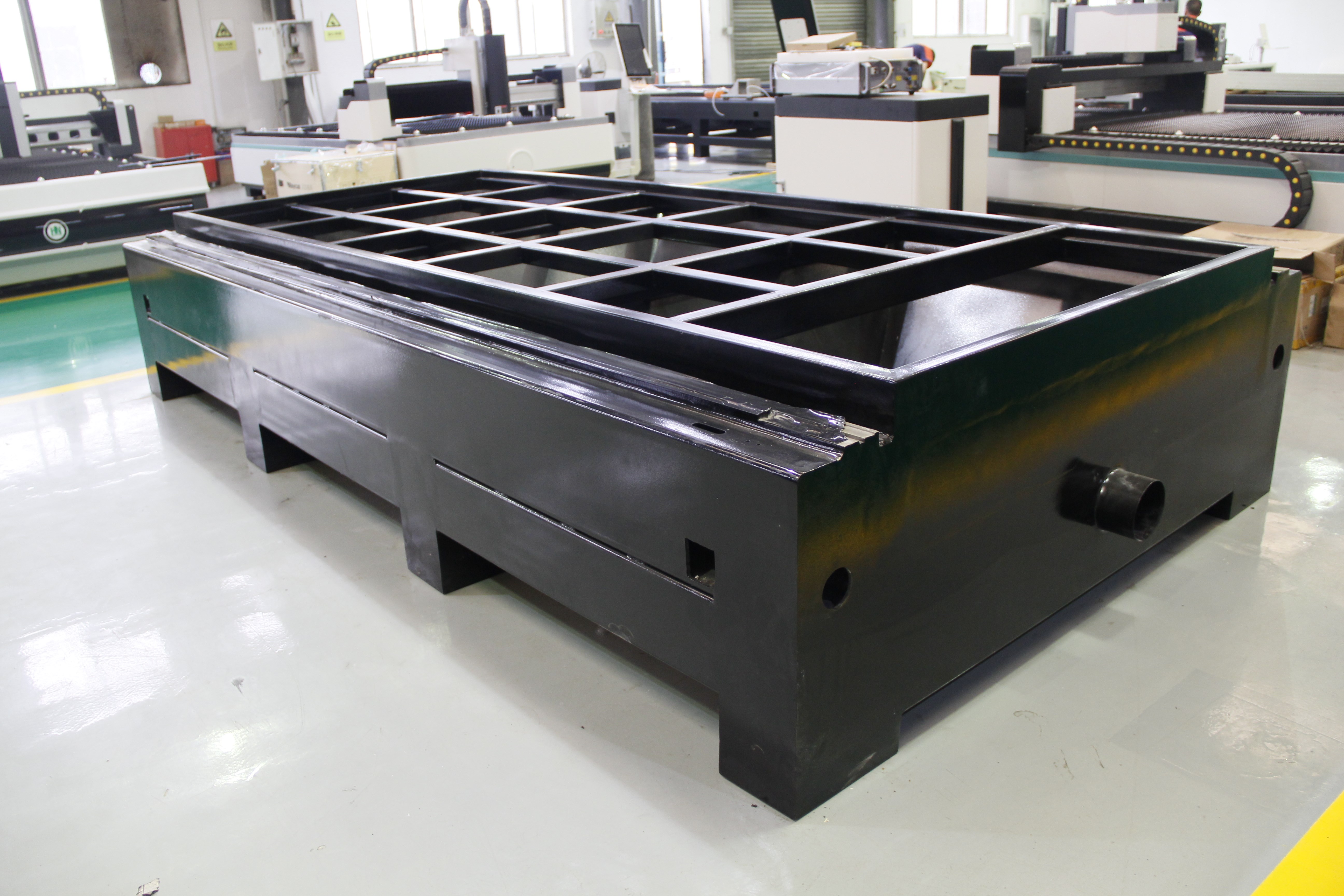

Industry heavy duty steel welding structure

The machine structure adopts industrial heavy steel structure, under heat treatment, suffer lower temperature

tempering and annealing, won't deform after long time use. the machine base is very stable when the processing.

Laser source : RAYCUS/MAX/IPG/RECI

Fiber laser is compact in structure, stable in performance and widely used, Fiber laser has high photoelectric

conversion efficiency, good beam quality and low maintenance cost,(The USA IPG Laser source is optional)

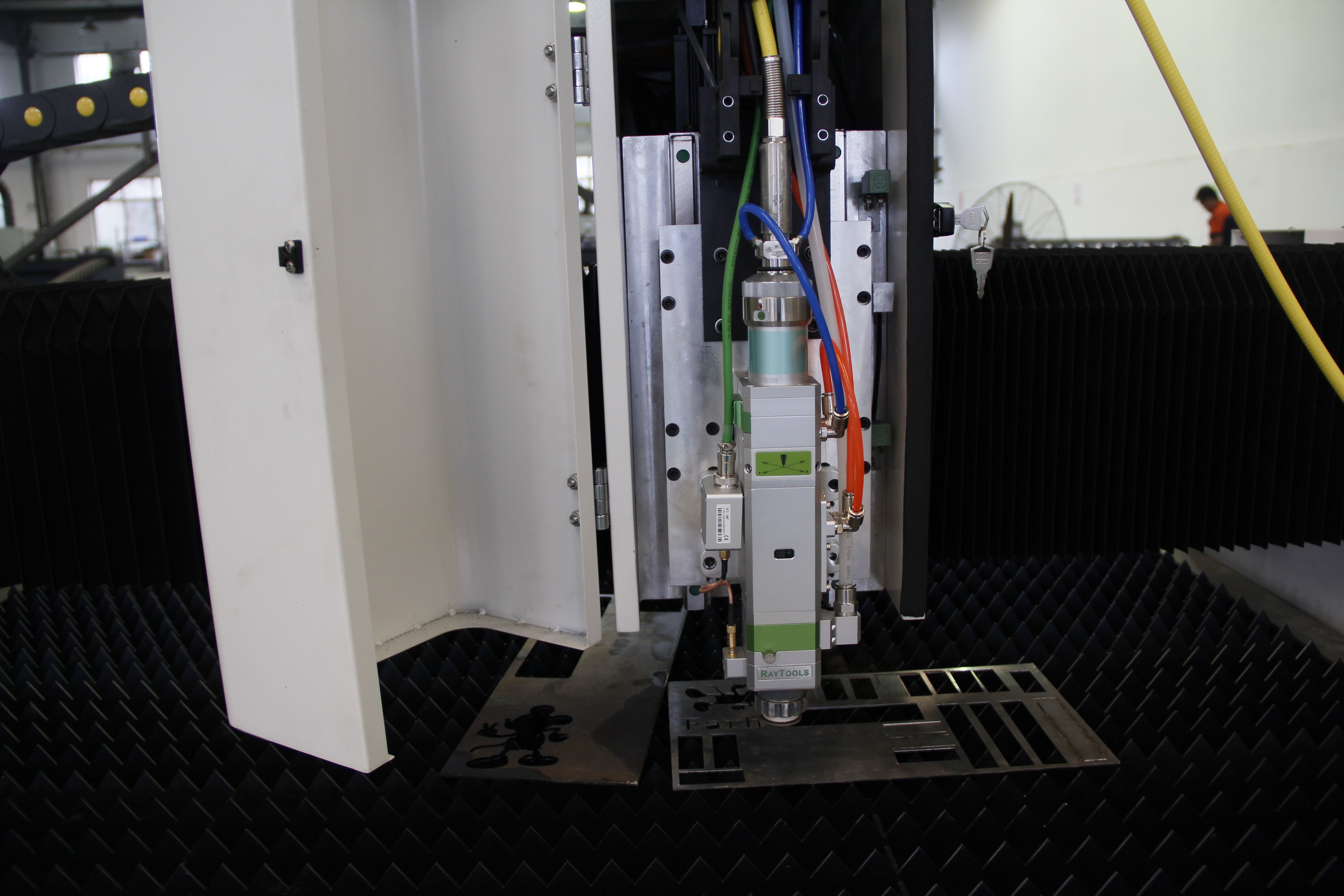

Raytools cutting head with auto focus

Optimized optical configuration, smooth and efficient airflow design; • The laser head body is increased anti-collision function;

Turntable focus adjustment and can be manually corrected, fine and flexible adjustment, adjustable range is 20mm,accuracy is 0.05mm

Professional Cypcut control system

The best control system in fiber laser machine industry, It is suitably applied to high power fiber laser machine

and can support the rotary device, exchange table and automatic focus cutting head.

Taiwan HIWIN or PMI rails and YYC rack

Japan YASKAWA or FUJI servo motor

High accuracy. low noise, stable performance FUJI/YASKAWA/OTHER BRAND

S&A or HANLI water chiller

Focus on the research and development of industrial cold machine, independent research and development of core

parts strictly implement ISO production management system, With excellent quality and leading research retrength

Work table
