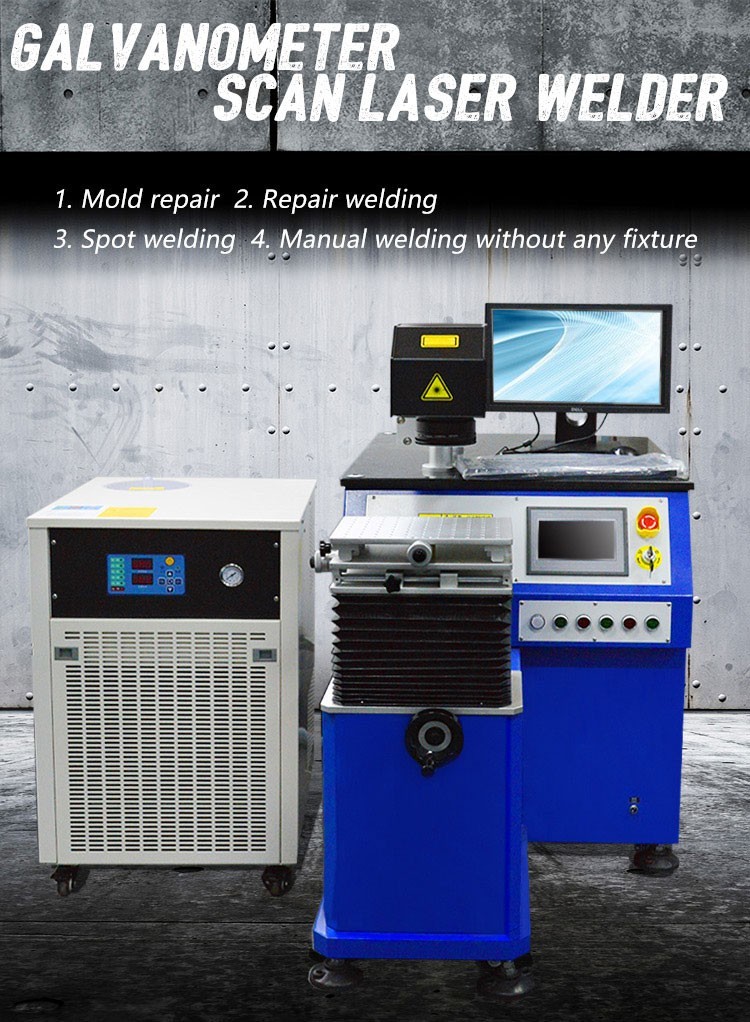

400W mould laser welding machine YAG desktop laser welding machine

Product Application:

Laser die repairing welding machine is to weld the special welding wire to the damaged parts of the die through the instantaneous high heat energy generated by the laser, and firmly weld with the original base material. After welding, it is processed into a smooth surface by EDM or grinding, so as to repair the die.

Widely used in die repair and metal parts repair, can weld a variety of die materials: S136, NAK80, 718, 738, P20, SKD-11, SKD-61, H13, W302, GS2344, GS2343, GS2082, etc.

TECHNICIAL PARAMETERS
Model		HY-M200W/M400W
Maximum Laser Power		200W//400W
The Laser Wavelength		1.06um
Laser Welding Frenquency		<=50HZ/100HZ
Laser Welding Depth		2mm/3mm
Positioning System		Microscope or CCD
Laser Welding Wire		0.2-0.8
Electricity Demand		220V/50HZ/40A, 380V/50HZ/40A
Cooling Mode		Water Cooling
The Whole Machine Consumes Power		<=6KW/8KW
The Whole Machine Size		WLH (110*60*1250cm)

Main Advantages:

Laser welding is to irradiate a high energy density laser beam on two parts of the material, so that the local heating melt, and then cooling and solidification into one. Compared with traditional welding technology, laser welding has the following advantages:
1. Small heat-affected zone of laser repair welding will not lead to deformation of precision die, large welding depth, strong welding, sufficient melting, no repair marks, no depression in the joint of molten pool melt bump and matrix.
2. With a special microscope observation system for cross cursor, the magnification can be adjusted to achieve precise alignment.
