    Portable welding machine for jewelry customized laser welding machine

    Ask Lasest Price
    Brand Name : HM
    Model Number : HM-WLD
    Certification : CE
    Price : 3500
    Payment Terms : T/T, Western Union
    Supply Ability : 99
    Delivery Time : 7 work days
    • Product Details
    • Company Profile

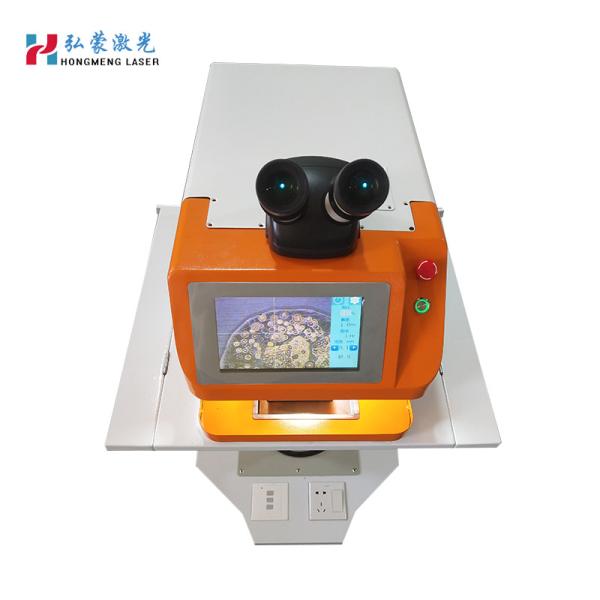

    Portable welding machine for jewelry customized laser welding machine

    Product Description

    What can portable welding machine do?
    --- This welder is specially developed for laser welding of jewelry and mainly used in perforating and spot welding of gold and silver jewelry. The laser spot welding is an important aspect of laser process technology application.The spot welding process is thermal conduction, The laser radiation heats the surface of work piece,and the surface heat diffuse to the interior through thermal conduction and melts the work piece by controlling the width, energy, peak power and repeating frequency of laser- pulse to form specific molten pool. Because of its unique advantage,it is widely used in the process of gold and silver jewelry and welding of mini and small parts

    Technical Parameters


    Wavelength1064nm
    Max. output power60W/ 80W
    Max. pulse energy40J /60J
    Pump sourceSingle lamp
    Pulse Width0.1-10ms
    Pulse frequency1-10HzAdjustable level
    Aiming and positioningMicroscope + camera system
    ApplicationWelding and repairing all kinds of metal jewelry
    Host power consumption≤2KW
    electricity demand220V±5% ,50HZ
    Cooling systemWater circulation air cooling
    DimensionsL:510mm,M:295mm,H:420mm

    Application of Laser welding machine:

    Jewelry laser spot welding machine is widely used in aviation, aerospace, sporting goods, jewelry, golf clubs, medical equipment, aluminum alloy dentures, instrumentation, electronics, machining, automotive and other industries, in particular for the hole of gold and silver jewelry, Spot welding seams, inlaid force pieces and claw foot parts and other welding


    Main configuration:
    Crystal: customized version 7*110
    Xenon lamp: customized version 8*90*180 (two poles with wire)
    Power supply: 60W boost power supply
    Microscope: Motic
    Cavity: customized ceramic and cavity
    Chiller: Custom built-in 2.8L water tank for air cooling
